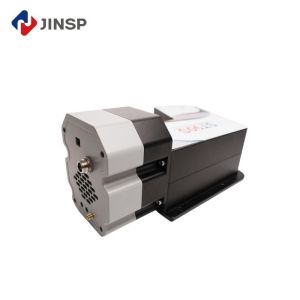

    Modular Raman Spectrometer with VPH Holographic Grating and Deep-Cooling CCD for High-Sensitivity Gas Detection

    Ask Lasest Price
    Brand Name : JINSP
    Model Number : ST90S
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 100 PCS/60-70working days
    Delivery Time : 60-70 working days
    • Product Details
    • Company Profile

    Modular Raman Spectrometer with VPH Holographic Grating and Deep-Cooling CCD for High-Sensitivity Gas Detection

    ST90S Raman Transmission Imaging Spectrometer

    With its VPH holographic grating (90% efficiency), the JINSP transmission spectrometer achieves exceptional sensitivity—5x greater than reflective systems. Its precision optics double standard resolution while maintaining high stability. The included deep-cooling CCD offers excellent SNR and quantum efficiency in a compact, industry-ready design.


    Ideal for 532nm Raman systems, the ST90S delivers superior gas detection capabilities. Its 4200 cm⁻¹ range and 4 cm⁻¹ resolution provide precision matching large research spectrometers in a compact design.

    Technical Parameters:


    Performance Indicators

    Parameters

    Detector

    -

    See model table for details

    Optical
    Parameters

    Wavelength Range

    ST90S1: 540nm~686nm corresponds to 260~4200cm-1
    ST90S2: 532nm~670nm corresponds to 0~3850cm-1

    Optical Resolution(ST90S1)

    0.25nm, corresponds to 8cm-1(50μm slit)
    0.14nm, corresponds to 5cm-1(25μm slit)

    Grating Type

    VPH volume holographic transmission grating

    Diffraction Efficiency

    >85%

    Fiber Interface

    SMA905 or Φ10mm multi-core optical fiber

    Numerical Aperture

    0.25

    Electrical
    Parameters

    Integration Time

    1ms-3600s

    Data Output Interface

    USB2.0

    ADC Bit Depth

    16-bit

    Power Supply

    DC12V (ST90S1~ST90S4)
    DC5V (ST90S5)

    Operating Current

    3A (typical value 2A)

    Operating Temperature

    -20°C ~60°C

    Storage Temperature

    -30°C ~70°C

    Operating Humidity

    <90%RH (no condensation)

    Physical
    Parameters

    Dimensions

    348.7mm × 222.8mm × 126mm

    Weight

    <6kg (including camera)


    Product Model List:

    Product Model

    ST90S1

    ST90S2

    ST90S3

    ST90S4

    Detector Brand
    or Model

    AndoriVac 316

    PI PIXIS 100BX

    Raptor261FI

    Raptor261BI

    Chip Type

    Deep depletion of
    back illuminated

    Back
    illuminated

    Front
    illuminated

    Back
    illuminated

    Quantum
    Efficiency

    80%@600nm

    90%@600nm

    45%@600nm

    80%@600nm

    Number of Pixels

    2000*256

    1340*100

    2048*256

    2048*256

    Pixel Size (μm)

    15*15

    20*20

    15*15

    15*15

    Image Area (mm)

    30*3.8

    26.8*2.0

    30*3.8

    30*3.8

    Cooling
    Temperature ()

    -70

    -80

    -70

    -70

    * Customization available for other ranges


    Working with Lasers and Rama Probe to build Raman measurement system, it has below technical characteristics:

    • Micro-region in situ
    • Non-contact and non-destructive
    • Fast spectroscopy
    • High sensitivity
    • Weak signal
    • Aqueous samples


    Applications:

    The JINSP ST90S spectrometer is perfect for a variety of application occasions and scenarios. It has a wavelength range of 540nm~686nm, which corresponds to 260~4200cm-1. The product category is fiber optic spectrometers, and it weighs less than 6kg (including camera). The numerical aperture is 0.25, and the integration time ranges from 1ms-3600s.


    One of the most common scenarios where the JINSP ST90S is used is in 532 Confocal Raman microscopy. This technique is used to study the chemical and structural properties of molecules. The ultra-high resolution spectrometer makes it possible to detect even the smallest signals with great precision, which is essential for this type of research.


    Overall, the JINSP ST90S is a versatile and reliable spectrometer that can be used in a variety of applications. Its ultimate sensitivity and high resolution make it a valuable tool for researchers and scientists who need to study the properties of molecules in great detail.

    OEM miniature spectrometer high-sensitivity fiber spectrometer optic spectrometer

    High-Throughput Transmission raman Spectrometer for Quick Data Collection

    High-Throughput Transmission raman Spectrometer for Quick Data CollectionPacking and Shipping:

    The High-Throughput Transmission Fiber Spectrometer comes in a sturdy cardboard box to ensure safe delivery.

    High-Throughput Transmission raman Spectrometer for Quick Data Collection

    Company Introduction:

    JINSP Company Limited, abbreviated as "JINSP", is a professional supplier with over 17 years of experience in spectral detection technology products, including Raman, FT-IR, LIBS technologies, etc. After 17 years of technology accumulation, the company’s core key technologies have reached the international leading position at the level, and the cumulative number of patent applications exceeded 200.


    JINSP offers over twenty spectroscopic products across various fields, including pharmaceutical and chemical industries, public security, and customs. Products are available nationwide and are exported to over 30 countries, with cumulative sales exceeding 3,000 units.


    Benefit from 30+ R&D engineers, including 4 Ph.D., JINSP is deeply rooted in the field of personalized product customization, and is committed to meeting the diverse and unique needs of customers with excellent professional technology and innovative design capabilities.

    Modular Raman Spectrometer with VPH Holographic Grating and Deep-Cooling CCD for High-Sensitivity Gas DetectionModular Raman Spectrometer with VPH Holographic Grating and Deep-Cooling CCD for High-Sensitivity Gas DetectionModular Raman Spectrometer with VPH Holographic Grating and Deep-Cooling CCD for High-Sensitivity Gas Detection

    FAQ:

    1. What is the brand name of the product?

    JINSP is our brand name.

    2. What is the model number of the product?

    ST90S Transmission Imaging Spectrometer.

    3. What is the minimum order quantity for the product?

    The minimum order quantity is 1 PC.

    4. What are the payment terms for the product?

    The payment terms are T/T and Western Union.

    5. What is the delivery time for the product?

    The delivery time is 60-70 working days.
